Rosemount

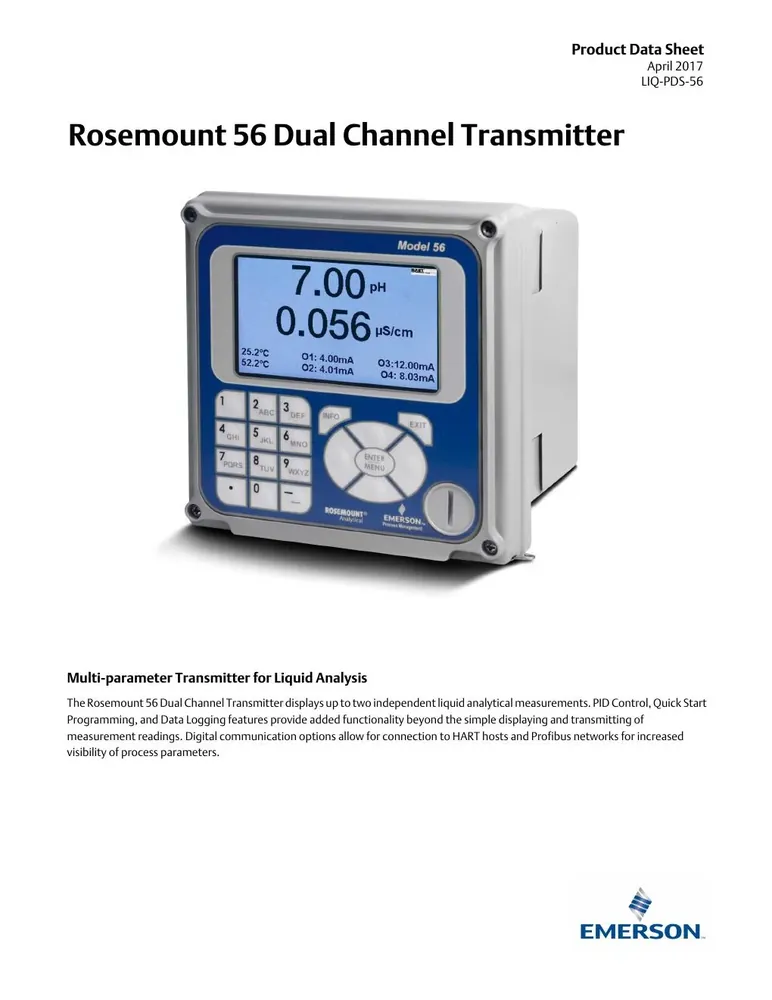

Rosemount 56 Dual Channel Transmitter
Цена по запросу
Без онлайн-оплаты · строки в RFQ BOM
Скачать datasheet PDF
RFQ только BOM. Отправьте для инженерного КП.
Ключевые параметры
Ambient temperature
14 to 131 °F (−10 to 55 °C); turbidity 14 to 122 °F; storage −4 to 140 °F
Display
4.3 in colour TFT 480×272 back-lit customizable LOI
Product Family
Rosemount 56 dual channel liquid analytical transmitter
Inputs
Up to two independent channels: pH/ORP, ISE, contacting/toroidal conductivity, free/total chlorine, DO, ozone, turbidity, flow
Outputs
Four actively powered 4–20 mA or 0–20 mA (550 Ω max); programmable PID; HART on output 1 or Profibus DP option
Power
Line-powered options including 24 VDC with 4 alarm relays (ordering code 02)
| Параметр | Значение |
|---|---|
| Ambient temperature | 14 to 131 °F (−10 to 55 °C); turbidity 14 to 122 °F; storage −4 to 140 °F |
| Display | 4.3 in colour TFT 480×272 back-lit customizable LOI |
| Product Family | Rosemount 56 dual channel liquid analytical transmitter |
| Inputs | Up to two independent channels: pH/ORP, ISE, contacting/toroidal conductivity, free/total chlorine, DO, ozone, turbidity, flow |
| Outputs | Four actively powered 4–20 mA or 0–20 mA (550 Ω max); programmable PID; HART on output 1 or Profibus DP option |
| Power | Line-powered options including 24 VDC with 4 alarm relays (ordering code 02) |
| Enclosure | 6.2 × 6.2 × 5.2 in; ½ in / PG13.5 conduit; weight ~3 lb (1.5 kg) |
| Features | Quick Start programming, data logging, USB, PID control, auto pH buffer recognition |
| Communications | HART (standard option HT) or Profibus DP (DP) |
| Alarms | Up to 4 alarm relays (power option dependent) |
